EEGToolkit.jl

Computational EEG analysis with emphasis in sleep neuroscience.

Developed at the Laboratory for the Study of Sleep Slow-wave activity

The Gods of the earth and sea
Sought thro' Nature to find this Tree,
But their search was all in vain:
There grows one in the Human Brain.

— William Blake

This package has three aims:

  • Simplicity
  • Transparency
  • Efficiency

Simplicity means that a person with only basic programming skills should be able to use it. Transparency means that any methodology implemented by the package should be accessible enough so as to be reported in a scientific paper. Efficiency means that large EEGs (e.g. sleep EEGs) should be processed and analyzed in seconds.

This package is free software—free as in freedom. You are free to use the code as you wish and for any purpose. You are free to study the code and change it to make it do what you wish. You are free to redistribute copies of this package to help others. You are free to distribute copies of any modified version of this package.

Proprietary software hinders the liberty of its users. In science, it obscures the scientific process, hindering replication and collaboration. If you are a scientist, use free software whenever possible.

Package Features

  • Loading and processing EEG data
  • EEG visualization
  • Resampling and filtering
  • Masking and conditional analysis
  • Sleep stage handling
  • NREM Period detection
  • Power spectral analysis
  • Spindle detection algorithms
  • Slow Wave detection
  • Connectivity metrics (wPLI and coherence)
  • Automated artifact detection
  • Hypnograms
  • Empirical mode decomposition and Hilbert-Huang transform
  • SWA dissipation and exponential decay fitting

Time series

EEGToolkit.TimeSeries — Type

A struct representing time series data.

Fields

  • x::Vector{<:AbstractFloat}: Time series data.
  • fs::Integer: Sampling rate.
source
EEGToolkit.segment — Function

segment(v::Vector{T}, L::Int; overlap::Union{<:AbstractFloat,Integer}=0, symmetric=false) where {T}

Splits a vector v into segments of length L with an overlap overlap expressed as a fraction of L. The overlap defaults to 0 (no overlap). Returns a vector $v$ of vectors - i.e. Vector{Vector{T}} - with $\vec{v_i}$ the $i$th segment in the split.

The function always attempts to capture the whole vector, even if the final split is not of length L. For example,

> x = [1, 2, 3, 4, 5, 6, 7, 8, 9, 0]
> segment(x, 5)
2-element Vector{Vector{Int64}}:
[1, 2, 3, 4, 5]
[6, 7, 8, 9, 0]

> segment(x, 7)
2-element Vector{Vector{Int64}}:
[1, 2, 3, 4, 5, 6, 7]
[8, 9, 0]

Set symmetric=true to ensure that, if this occurs, the last split is dropped.

> segment(x, 3; symmetric=true)
3-element Vector{Vector{Int64}}:
[1, 2, 3]
[4, 5, 6]
[7, 8, 9]

If L is equal to the segment length, segment raises a warning and returns a vector with only the original vector: [v]. The return value ensures type-safety but the warning is raised because splitting a vector over its length is potentially a programming mistake.

source

segment(ts::TimeSeries, L::Int; kargs...)

Wrapper to segment the vector ts.x in the time series ts.

source
EEGToolkit.epoch — Function

epoch(signal::TimeSeries, n::Integer; epoch_length::Integer=30)

Returns a vector [x₁, …, xₖ] with all values xᵢ corresponding to the nth epoch in the signal.

source

epoch(signal::TimeSeries, n::Integer, m::Integer)

Returns a vector [x₁, …, xₖ] with all indexes corresponding to epochs n, n+1, …, m of the EEG. The default sampling rate is used to compute the indexes.

source
EEGToolkit.num_epochs — Function
`num_epochs(ts::TimeSeries, epoch_length::Int)`

Returns the number of epochs of a time series, given an epoch length in seconds.

source
EEGToolkit.trim_to_epochs — Function
trim_to_epochs(ts::TimeSeries, epoch_length::Int)

Returns a new TimeSeries trimmed so that its duration is an exact multiple of the epoch_length in seconds.

source
EEGToolkit.trim_to_epochs! — Function
trim_to_epochs!(ts::TimeSeries, epoch_length::Int)

In-place version of trim_to_epochs. Modifies the input TimeSeries by resizing its internal data vector.

source
EEGToolkit.plot_ts — Function

plot_ts(ts::TimeSeries, s::Integer, e::Integer; norm=false, ylab="Amplitude (uV)")

Plots TimeSeries from epoch s to epoch e. The series many be normalized.

source

plot_ts(ts::TimeSeries, s::Integer; kargs...)

Plots TimeSeries at epoch s.

source

plot_ts(ts::TimeSeries; norm=false, ylab="Amplitude (uV)")

Plots TimeSeries. The series may be normalized.

source

EEG

The EEG struct is the core data structure of this package. It encapsulates the raw EEG data as a dictionary of String to TimeSeries objects. It also contains global and channel-specific masks for conditional analysis, in the form of dictionaries of Symbol to BitVector data. This information is hidden from the user and can only be accessed or manipulated through the provided API, ensuring data integrity and consistency.

EEGToolkit.EEG — Type

A struct for the EEG data type. An EEG is conceived as a collection of named time series with optional masks (named bit vectors) that can be applied to the time series for various purposes (e.g. artifact removal, sleep staging). Masks are either global (applicable to all channels) or channel-specific.

Fields

  • _signals::Dict{String, TimeSeries}: A dictionary mapping signal labels (strings) to arrays of floating-point values.
  • _global_masks::Dict{Symbol, BitVector}: A dictionary mapping symbols to bit vectors representing global masks (e.g. NREM masks).
  • _channel_masks::Dict{String, Dict{Symbol, BitVector}}: A dictionary mapping channel names

to masks (dictionaries mapping symbols to bit vectors). These are channel-specific masks (e.g. artifact masks).

Constructors

EEG(file::String; id::String=""): Instantiates an EEG from an EDF file (file).

Example

eeg_data = EEG("path/to/edf_data/data.edf")
source
EEGToolkit.describe — Function
describe(eeg::EEG; epoch_length::Int=30)

Prints a description of the EEG object and returns a DataFrame with details specific to each channel.

source
EEGToolkit.get_channel — Function

getchannel(eeg::EEG, channelname::String)::TimeSeries

Returns the channel named channel_name from the eeg.

source
EEGToolkit.filter_channels — Function

filterchannels(eeg::EEG, filterfunction::Function)::Dict{String, TimeSeries}

Applies a filter_function to the dictionary which maps channel names to time series, and returns the filtered result.

Example: filter_channel(eeg, p -> startswith(first(p), "C")) would return only those EEG channels whose names begin with "C".

source
EEGToolkit.filter_channels! — Function

filterchannels!(eeg::EEG, filterfunction::Function)::Dict{String, TimeSeries}

Applies by reference a filter_function to the dictionary which maps channel names to time series.

Example: filter_channel(eeg, p -> startswith(first(p), "C")) would keep only those EEG channels whose names begin with "C".

source
EEGToolkit.remove_channel! — Function

remove_channel!(eeg::EEG, channel::String)

Removes a channel from the EEG.

source

remove_channel!(eeg::EEG, channels::Vector{String})

Removes a list of channels from the EEG.

source
EEGToolkit.plot_eeg — Function

plot_eeg(eeg::EEG, s::Integer, e::Integer; channels::Vector{String}=[""], spacing::AbstractFloat=1.5)

Plots EEG channels from epoch s to epoch e. Specific channels may be selected with the channels karg. The spacing argument is an added factor in the normalization of the EEG signals - the vertical distance between each signal in the plot grows proportionally to spacing.

source

Resampling and filtering

The package provides rational factor resampling to change the sampling rate of a TimeSeries. This is implemented via polyphase filtering (inserting zeros, low-pass filtering, and decimating) to avoid aliasing artifacts. It also provides wrappers around DSP functions for filtering raw signals as well as time series objects.

EEGToolkit.resample — Function

resample(signal::TimeSeries, new_fs::Float64)::TimeSeries

Resamples the input signal to the given new_fs, using rational factor resampling (L/M). Returns a new TimeSeries with the resampled signal and updated sampling rate.

source
EEGToolkit.apply_lowpass — Function
apply_lowpass(x::AbstractVector, fs::Real, cutoff::Real; order::Integer=2)

Applies a zero-phase Butterworth low-pass filter to a vector x. Returns a new filtered vector.

source
apply_lowpass(ts::TimeSeries, cutoff::Real; order::Integer=2)

Non-mutating version for TimeSeries. Returns a new TimeSeries object containing the filtered signal.

source
EEGToolkit.apply_lowpass! — Function
apply_lowpass!(ts::TimeSeries, cutoff::Real; order::Integer=2)

Mutates the ts.x field of a TimeSeries object by applying a low-pass filter.

source
EEGToolkit.apply_highpass — Function
apply_highpass(x::AbstractVector, fs::Real, cutoff::Real; order::Integer=2)

Applies a zero-phase Butterworth high-pass filter to a vector x. Returns a new filtered vector.

source
apply_highpass(ts::TimeSeries, cutoff::Real; order::Integer=2)

Non-mutating version for TimeSeries. Returns a new TimeSeries object.

source
EEGToolkit.apply_highpass! — Function
apply_highpass!(ts::TimeSeries, cutoff::Real; order::Integer=2)

Mutates the ts.x field of a TimeSeries object by applying a high-pass filter.

source
EEGToolkit.apply_bandpass — Function
apply_bandpass(x::AbstractVector, fs::Real, freq_band::Tuple{Real, Real}; order::Integer=2)

Applies a zero-phase Butterworth band-pass filter to a vector x. Returns a new filtered vector.

source
apply_bandpass(ts::TimeSeries, freq_band::Tuple{Real, Real}; order::Integer=2)

Non-mutating version for TimeSeries. Returns a new TimeSeries object containing the filtered signal.

source
EEGToolkit.apply_bandpass! — Function
apply_bandpass!(ts::TimeSeries, freq_band::Tuple{Real, Real}; order::Integer=2)

Mutates the ts.x field of a TimeSeries object by applying a band-pass filter.

source
EEGToolkit.apply_notch — Function
apply_notch(x::AbstractVector, fs::Real, freq::Real; bandwidth=2.0, order::Integer=2)

Applies a zero-phase notch (stop-band) filter to a vector x to attenuate a specific frequency. Commonly used for power-line interference (50/60 Hz).

source
apply_notch(ts::TimeSeries, freq::Real; bandwidth=2.0, order::Integer=2)

Non-mutating version for TimeSeries. Returns a new TimeSeries object.

source
EEGToolkit.apply_notch! — Function
apply_notch!(ts::TimeSeries, freq::Real; bandwidth=2.0, order::Integer=2)

Mutates the ts.x field of a TimeSeries object by applying a notch filter at freq.

source

Masking and Conditional Analysis

As stated above, this package allows for the use of masks (BitVectors) to perform conditional analysis. Masks allow you to selectively include or reject specific epochs during analysis without modifying the underlying raw data.

Masks can be stored in the EEG struct or created on-the-fly for specific analyses. Masks associated to an EEG object are always named with a symbol, and are either global (apply to all channels) or channel-specific (see EEG documentation above).

EEGToolkit.get_masks — Function
get_masks(eeg::EEG)::Dict{Symbol,BitVector}

Return all global (EEG-level) masks associated with eeg.

Global masks apply to all channels (e.g. sleep staging, NREM masks).

source
get_masks(eeg::EEG, channel::String)::Dict{Symbol,BitVector}

Return all masks associated with channel.

This includes only channel-specific masks (e.g. artifact masks).

source
get_masks(eeg::EEG, name::Symbol)::BitVector

Return a global mask by name.

source
get_masks(eeg::EEG, channel::String, name::Symbol)::BitVector

Return mask name for the given channel.

source
EEGToolkit.add_mask! — Function
add_mask!(eeg::EEG, name::Symbol, mask::BitVector)

Adds a mask with key name and value mask to the global masks of eeg. Global masks apply to all channels (e.g. a NREM masks).

source
EEGToolkit.stage_mask — Function
`function stage_mask(staging::Staging; include)`

Given a Staging vector, return a BitVector mask where true corresponds to epochs whose stage is in the set of stages specified by include.

The include argument can be either a Symbol or a vector of Symbols or Strings. If include is a Symbol, it should be one of the keys in STAGE_GROUPS, and the mask will include all stages in the corresponding group. If include is a vector, it can contain either Symbols (which will be looked up in STAGE_GROUPS) or Strings (which will be included directly).

source

NREM Period detection

NREM period definition

Following Feinberg & Floyd and Dijk, a NREM period is a sequence of epochs satisfying the following conditions:

  • It starts with stages 2, 3 or 4.
  • It contains at least 15 minutes of stages 2, 3 or 4 in total.
  • It ends with 5 or more minutes of REM, or with 5 or more minutes of wakefulness.

Epochs in the sequence are allowed to contain occurrences of REM sleep or wakefulness in between, as long as the duration of these occurrences is less than 5 minutes. But the epochs corresponding to these occurrences will not be part of the NREM period. For example, in a stage sequence of the form

... - 10m of stage two - 1m of REM - 5m of stage three - 5m of REM - ...

the NREM period consists of the first 10 minutes of stage 2 and the 5 minutes of stage 3, ignoring the 1 minute of REM in-between them.

Importantly, the restriction that ending REM periods must last at least 5 minutes is not imposed when detecting the first and the last NREM period in a night of sleep.

NREM detection algorithm

Let $n$ be the number of epochs corresponding to $15$ minutes and $m$ the number of epochs corresponding to $5$ minutes. (In 30 second epochs, $n = 30, m = 10$).

The algorithm assumes that the staging field of an EEG has been set to a vector $\vec{s}$ that contains only the strings $1, \ldots, 6, ?$ (with $5$ marking REM, $6$ wakefulness, $?$ unknown/unstaged).

The algorithm works by mapping $\vec{s}$ to $\alpha = s_1 \ldots s_q$ a word over the language generated by $\Sigma = \{1, \ldots, 6, ?\}$.

Observe that the language $[(5+6)^*(2+3+4)^*]^*$ is partitioned into $U$ and $U’$, where $U$ is the set of words containing at least $n$ symbols $2, 3, 4$ where neither $5$ nor $6$ occur consecutively $m$ times. Then $\alpha$ can be decomposed into

\[\alpha = \psi_1 \phi_1 \psi_2 \phi_2 \ldots \psi_k \phi_k \psi_{k+1}\]

where $\phi_i = \varphi_i (5^m5^* + 6^m6^*)$ and $\varphi_i \in U$. Such a decomposition readily provides the number of NREM periods in the EEG (i.e. $k$). Furthermore, the epochs which comprise these periods are easily inferable from the decomposition.

EEGToolkit.nrem — Function

function nrem(staging::Staging, n::Integer=30, m::Integer=10)

Finds the k underlying NREM periods in a staging vector. Returns a vector of vectors V s.t. the ith vector in V contains the mask for the ith NREM period. Thus, the length of V is k the number of NREM periods.

The n parameter is the number of (not necessarily consecutive) epochs which comprise a NREM period. The m parameter is the number of REM or wakefulness epochs required to mark the end of a NREM period (if n NREM epochs were parsed before) or to disregard the current sequence and begin parsing from the next NREM epoch.

source

Slow wave detection

This package implements the detection of Slow Wave Oscillations (SWO) based on the negative-peak method described by Massimini et al. (2004). This includes detection, morphology statistics, and visualization.

EEGToolkit.SlowWave — Type
SlowWave

A structure representing a detected Slow Wave Oscillation.

Fields

  • start_idx::Int: Index of the first zero-crossing (start of negative phase).
  • neg_peak_idx::Int: Index of the negative peak (trough).
  • mid_crossing_idx::Int: Index of the zero-crossing between negative and positive phases.
  • pos_peak_idx::Int: Index of the positive peak.
  • end_idx::Int: Index of the final zero-crossing (end of positive phase).
  • neg_amp::Float64: Amplitude of the negative peak (µV).
  • pos_amp::Float64: Amplitude of the positive peak (µV).
  • ptp_amp::Float64: Peak-to-peak amplitude (µV).
  • duration::Float64: Total duration of the wave (seconds).
  • frequency::Float64: Instantaneous frequency (Hz).
  • epoch::Integer: To which epoch does the (beginning of the) slow wave belong? Useful for masking.
source
EEGToolkit.detect_slow_waves — Function

detectslowwaves(signal::Vector{T}, fs::Number; kwargs...)

Implements the Negative-Peak Method for Slow Wave detection as described by Massimini et al. (2004).

This algorithm anchors detection on the central negative peak (Down-state) and validates the wave based on zero-crossing intervals and amplitude thresholds.

Arguments

  • signal::Vector{T}: The EEG data vector (usually referenced to mastoids).
  • fs::Number: Sampling frequency in Hz.

Keyword Arguments (Thresholds)

  • freq_band::Tuple{Float64, Float64}: Bandpass filter range. Default is (0.1, 4.0).
  • amp_neg::Float64: Min absolute amplitude for the negative trough. Default is 40.0 (µV). Note: Massimini used varying thresholds, YASA defaults to 40µV.
  • amp_ptp::Float64: Min peak-to-peak amplitude. Default is 75.0 (µV).
  • dur_neg::Tuple{Float64, Float64}: Acceptable duration range for the negative half-wave. Default (0.3, 1.5).
  • dur_total::Tuple{Float64, Float64}: Acceptable duration range for the full cycle. Default (0.5, 2.0).

Returns

  • Vector{SlowWave}: A list of detected slow wave events.

Reference

Massimini, M., et al. (2004). "The sleep slow oscillation as a traveling wave." J Neurosci.

source
detect_slow_waves(ts::TimeSeries; kwargs...)

Wrapper for TimeSeries input. Extracts the signal and sampling frequency, then calls the main detection function.

source
EEGToolkit.filter_waves — Function
filter_waves(waves::Vector{SlowWave}, mask::BitVector)

Filters a list of SlowWaves, returning only those that belong to epochs where mask is true.

source
EEGToolkit.compute_morphology_metrics — Function
compute_morphology_metrics(waves::Vector{SlowWave}, signal::AbstractVector, fs::Number)

Computes aggregate morphology statistics for a set of waves. Total duration is inferred directly from the length of the provided signal.

Calculates:

  1. Density (Count / min)
  2. Mean Duration
  3. Mean PTP Amplitude
  4. Mean Slope (Down-state slope)
source
compute_morphology_metrics(waves::Vector{SlowWave}, ts::TimeSeries)

Wrapper for TimeSeries input. Extracts the signal and sampling frequency, then calls the main computation function.

source
EEGToolkit.plot_single_wave — Function
plot_single_wave(signal, fs, wave; padding=2.0, freq_band=(0.1, 4.0))

Plots a specific detected Slow Wave with context. The plot includes:

  • The filtered signal segment around the wave (in gray).
  • The detected wave itself highlighted in red.
  • Markers for the negative and positive peaks.
  • Vertical dashed lines for the zero-crossings (start, mid, end).
source
plot_single_wave(ts::TimeSeries, wave; kwargs...)

Wrapper for TimeSeries input. Extracts the signal and sampling frequency, then calls the main plotting function.

source
EEGToolkit.plot_average_morphology — Function
plot_average_morphology(signal::Vector, fs::Number, waves::Vector; window=1.0, freq_band=(0.1, 4.0), align=:neg_peak)

Calculates and plots the Grand Average (mean waveform) of a set of detected slow waves, aligned to a specific feature.

This function allows you to visualize the "prototypical" shape of the slow oscillations in your data by averaging all detected events. It handles signal filtering, segment extraction, alignment, and visualization with standard deviation confidence intervals.

Arguments

  • signal::Vector: The raw or pre-processed EEG data vector (single channel).
  • fs::Number: The sampling frequency of the signal in Hz.
  • waves::Vector: A list of detected wave objects (e.g., SlowWave structs). Each object must contain index fields corresponding to the chosen alignment (e.g., neg_peak_idx).

Keyword Arguments

  • window::Float64: The time window (in seconds) to include before and after the alignment point.

    • Default: 1.0 (resulting in a 2-second total plot duration: -1.0s to +1.0s).
    • Note: Waves that are too close to the start or end of the signal to fit this window will be excluded.

  • freq_band::Tuple{Float64, Float64}: The frequency range for the bandpass filter applied prior to averaging.

    • Default: (0.1, 4.0) Hz (Delta band).
    • Purpose: Ensures the morphology reflects the slow-wave component specifically, removing noise or faster activity (like spindles) that might obscure the mean shape.

  • align::Symbol: The feature of the wave to use as the center (0s) of the time axis.

    • :neg_peak (Default): Aligns to the trough of the slow wave (the "Down-state").
    • :pos_peak: Aligns to the subsequent positive peak (the "Up-state").
    • :mid: Aligns to the zero-crossing between the negative and positive phases.
    • :start: Aligns to the first zero-crossing (start of the wave).

Returns

  • Plots.Plot: A plot object displaying the mean waveform (thick blue line) and the standard deviation (shaded region).
source
plot_average_morphology(ts::TimeSeries, waves::Vector; kwargs...)

Wrapper for TimeSeries input. Extracts the signal and sampling frequency, then calls the main plotting function.

source

Connectivity Metrics

This package allows for the estimation of functional connectivity between EEG signals, including Weighted Phase Lag Index (wPLI) and Magnitude-Squared Coherence.

EEGToolkit.compute_wpli — Function
compute_wpli(x, y, sampling_rate)

Computes the Weighted Phase Lag Index (wPLI) between two signals.

Arguments

  • x::AbstractMatrix: Signal X with shape (nsamples, nepochs).
  • y::AbstractMatrix: Signal Y with shape (nsamples, nepochs).
  • sampling_rate::Number: The sampling frequency in Hz.

Returns

  • wpli::Vector: The wPLI value for each frequency bin.
  • freqs::Vector: The corresponding frequency labels (0 to Nyquist).
source
EEGToolkit.compute_coherence — Function
compute_coherence(x, y, sampling_rate)

Computes the Magnitude-Squared Coherence between two signals.

Arguments

  • x::AbstractMatrix: Signal X with shape (nsamples, nepochs).
  • y::AbstractMatrix: Signal Y with shape (nsamples, nepochs).
  • sampling_rate::Number: The sampling frequency in Hz.

Returns

  • coherence::Vector: The coherence value (0 to 1) for each frequency bin.
  • freqs::Vector: The corresponding frequency labels (0 to Nyquist).
source

Spindle detection

This package implements two spindle detection algorithms discussed in O'Reilly and Nielsen (2015). We give a brief overview of them here but refer to their original publications for further detail.

EEGToolkit.sigma_index — Function

sigma_index(x::AbstractVector{<:AbstractFloat}, fs::Integer; mask::Union{Nothing, BitVector}=nothing, threshold::Real=4.5)

Computes the sigma-index (Huupponen et al., 2007) for 1-second segments of EEG data. Returns a DataFrame containing only the segments where the sigma-index exceeds the threshold.

Arguments

  • x: The EEG signal.
  • fs: Sampling frequency.
  • mask: Optional BitVector corresponding to 30-sec epochs to include (true) or ignore (false).
  • threshold: The minimum sigma-index to be considered a spindle (default: 4.5).

Reference: https://pubmed.ncbi.nlm.nih.gov/17555950/

source
EEGToolkit.relative_spindle_power — Function

relativespindlepower(x::AbstractVector{<:AbstractFloat}, fs::Integer; mask::Union{Nothing, BitVector}=nothing, threshold::Real=0.22)

Computes the Relative Spindle Power (Devuyst et al., 2011) for 1-second segments of EEG data. Returns a DataFrame containing only the segments where the RSP exceeds the threshold.

Arguments

  • x: The EEG signal.
  • fs: Sampling frequency.
  • mask: Optional BitVector corresponding to 30-sec epochs to include (true) or ignore (false).
  • threshold: The minimum RSP to be considered a spindle (default: 0.22).

Reference: https://pubmed.ncbi.nlm.nih.gov/22254656/

source

Power spectral analysis

This package allows for power spectral analysis of EEG signals. The PSD and Spectrogram constructor functions allow for highly flexible estimation of power spectra (e.g. Welch or Bartlett methods, with or without windowing, with or without normalization, etc.). However, the epoch_spectrogram is an off-the-shelf function that computes a spectrogram for an entire EEG signal following a standard procedure in sleep science. With default parameters, it divides the signal into 30-second epochs, computes the PSD for each epoch using Welch's method with Hanning windows (6 overlapping sub-epochs of five seconds each), and returns the resulting Spectrogram. The average spectrum can be obtained via the avg_spectra field of the Spectrogram struct.

EEGToolkit.AmplitudeSpectrum — Type

Structure for amplitude spectrum estimations. Estimations are by default one sided, with frequencies ranging from [0, fₛ/2]. The formula used is

\[\frac{2|H(f)|}{\sum_i w_i}\]

with $w_i$ a Hanning window.

Fields

  • freq::Vector{<:AbstractFloat}: Frequency range of the spectrum
  • spectrum::Vector{<:AbstractFloat}: Estimated spectral amplitude

Constructors

AmplitudeSpectrum(x::Vector{<:AbstractFloat}, sampling_rate::Integer, pad::Integer) : Computes a direct PSD over a signal x with a given sampling_rate.

source
EEGToolkit.PSD — Type

Structure for PSD estimations. Estimations are by default one sided, with frequencies ranging from [0, fₛ/2].

The default formula is

\[\frac{2|H(f)|^2}{\zeta \sum_i w_i^2}\]

with $w_1, \ldots, w_n$ a Hanning window and $\zeta$ a normalization factor which defaults to $1$.

Barlett or Welch's mehtod can be used, where the formula becomes

\[\frac{1}{M K \varphi} \sum_i^M \left[ \frac{2|H_i(f)|^2}{ \sum_i w_i^2} \right]\]

where $w_1, \ldots, w_n$ a Hanning window, $M$ the number of segments, $K$ the number of samples per segment, $H_i(f)$ the FFT of the $i$th segment of the signal, and $\varphi$ a normalization factor defaulting to 1.

Fields

  • freq::Vector{<:AbstractFloat}: Frequency range of the spectrum
  • spectrum::Vector{<:AbstractFloat} : Estimated spectral density in dB.

Constructors

  • PSD(x::Vector{<:AbstractFloat}, fs::Integer; window_function::Function = hanning, pad::Integer=0, normalization::Real=1): Computes PSD estimation of a signal x with sampling rate fs. A window_function is applied to the signal, defaulting to a Hanning window. The signal may be padded to an optional length pad (defaults to zero, i.e. no padding). A Real normalization is added to the denominator, which defaults to 1.
  • PSD(segs::Vector{Vector{T}}, fs::Integer; window_function=hanning, normalization::Real=1) where {T<:AbstractFloat}: Computes the average spectrum of the segment vectors segs. The estimation is normalized with a normalization that defaults to $1$. The window_function is applied to all segments prior to their PSD estimation.

PSD(x::Vector{<:AbstractFloat}, fs::Integer, seg_length::Integer; overlap::Union{<:AbstractFloat,Integer} = 0.5, window_function::Function=hanning, normalization::Real=1): Segments the signal x into segments of length seg_length, with an overlap of overlap which defaults to 0.5 (half the segment length). After signal segmentation, the average spectrum of the resulting segments is returned. A window_function is applied to all segments prior to their PSD estimation, defaulting to a Hanning window. The final estimation is normalized with a normalization factor that defaults to 1.

  • PSD(ts::TimeSeries; kargs...) : Wrapper to apply the first or second constructor to a TimeSeries signal.
  • PSD(ts::TimeSeries, seg_length::Integer; kargs...): Wrapper to apply the third constructor to a TimeSeries signal.
  • PSD(freq::Vector{<:AbstractFloat}, spectrum::Vector{<:AbstractFloat}): Direct constructor.
source
EEGToolkit.Spectrogram — Type

A spectrogram is a matrix $S^{M \times F}$ where $M$ is the number of windows in the windowing of a signal and $F$ is the length of the spectrum vector in any given window (i.e. the frequency resolution).

It is useful to observe spectral changes in time or to compute the spectrum of time-regions of interest (e.g. only NREM periods in a sleep EEG). The information available in direct PSD can be inferred from the spectrogram with ease.

Fields

  • time::Vector : Time domain
  • freq::Vector{<:AbstractFloat}: Frequency domain
  • spectrums::Matrix{<:AbstractFloat}: Power spectrum. Rows are time and columns are frequency; the value in spectrums[row, freq] is the power at time window row for frequency freq.
  • segment_length::Integer : Length of each segment in time.
  • aggregated_spectra::Vector{<:AbstractFloat} : Spectral average (mean of rows)

Constructors

  • Spectrogram(segs::Vector{Vector{T}}, psd_function::Function; dB = false) where {T<:AbstractFloat}: Given a sequence of windows $w_1, \ldots, w_k$ contained in the segs argument, computes the PSD within each window using a custom psd_function.
  • Spectrogram(signal::Vector{<:AbstractFloat}, window_length::Integer, psd_function::Function; overlap::Union{AbstractFloat, Integer}=0, dB=false): Splits a signal into (potentially overlapping) segments of length window_length and computes the Spectrogram over this windowing using the first constructor. A custom psd_function is used within each window. Symmetry is enforced over the split signal, meaning that if the last segment is of length not equal to the rest, it is dropped. Thus, all windows are of equal length.
  • function Spectrogram(ts::TimeSeries, window_length::Integer, psd_function::Function; kargs...): Wrapper constructor for a TimeSeries object.
source
EEGToolkit.plot_psd — Function

plot_psd(psd::PSD; freq_lim=30.0)

Plot a PSD with x-axis being frequency and y-axis being estimated power spectrum.

source
EEGToolkit.plot_spectrogram — Function

plot_spectrogram(spec::Spectrogram; freq_lim::AbstractFloat=30.0, type::Int=1, color=:nipy_spectral)

Plots a spectogram spec either in 2d (type = 1) or 3d (type = 2). An optional frequency limit (freq_lim) may be set (defaults to 30Hz). The color palette color may be set; defaults to nipy_spectral.

source
EEGToolkit.freq_band — Function

freq_band(spec::Union{PSD}, lower::AbstractFloat, upper::AbstractFloat)

Given a PSD, returns a Vector{<:AbstractFloat} with the powers within the frequency band [lower, upper].

source

freq_band(spec::Spectrogram, lower::AbstractFloat, upper::AbstractFloat, window::Integer)

Given a Spectrogram, returns a Vector{<:AbstractFloat} with the powers within a frequency band [lower, upper] of a specific window (row of the spectrogram).

source

freq_band(spec::Spectrogram, lower::AbstractFloat, upper::AbstractFloat)

Given a Spectrogram, returns a Matrix{<:AbstractFloat} with the powers within a frequency band [lower, upper] across all time windows.

source
EEGToolkit.mean_band_power — Function

mean_band_power(spec::Spectrogram, lower::AbstractFloat, upper::AbstractFloat)

Given a Spectrogram, returns the mean power in a given frequency band [lower, upper]. This function effectively computes

\[\frac{1}{M\big(c_k - c_1\big)}\sum_{i=1}^{M}\sum_{j=c_1}^{c_k} S_{ij}\]

source

mean_band_power(spec::PSD, lower::AbstractFloat, upper::AbstractFloat)

Given a PSD, returns the mean power in a given frequency band [lower, upper].

source
EEGToolkit.total_band_power — Function

total_band_power(psd::PSD, lower::AbstractFloat, upper::AbstractFloat)

Given a PSD, computes the total power in the frequency band [lower, upper].

source

total_band_power(spec::Spectrogram, lower::AbstractFloat, upper::AbstractFloat)

Computes the total power of a specific frequency band over time from a Spectrogram. Returns a Vector of absolute power values (one per time window/epoch).

source
EEGToolkit.mean_total_band_power — Function

mean_total_band_power(spec::Spectrogram, lower::AbstractFloat, upper::AbstractFloat)

Calculates the total power within the band [lower, upper] for each epoch (time window) and then returns the average of these totals across all epochs.

This follows the procedure of adding power in frequency bins (e.g., 0.8 to 4.0 Hz) per epoch and then averaging over the selected periods (like NREM).

source
EEGToolkit.epoch_spectrogram — Function
epoch_spectrogram(signal::TimeSeries;
                  window_function::Function=hanning,
                  overlap::Union{<:AbstractFloat, Integer}=0.5,
                  normalization::Real=1,
                  mask::Union{Nothing, BitVector}=nothing,
                  dB::Bool=false)

Flexible wrapper for computing the epoch-by-epoch spectrogram of an EEG signal.

The signal is split into 30-second epochs. The spectrum of each epoch is computed using by default Welch's method with six overlapping windows of five seconds each. Bartlett's method may be used by setting overlap=0 and window=rect.

Arguments

  • signal::TimeSeries: The input signal containing data and sampling rate (fs).

Keyword Arguments

  • window_function: Window function to apply (default: hanning).
  • overlap: Overlap between segments (default: 0.5).
  • normalization: Normalization factor (default: 1). Set to signal.fs for PSD.
  • mask: Optional BitVector of the same length as the number of epochs.
    • true: Include epoch in analysis.
    • false: Reject/Exclude epoch.
  • dB: If true, returns results in decibels.

Returns

A Spectrogram object.

source

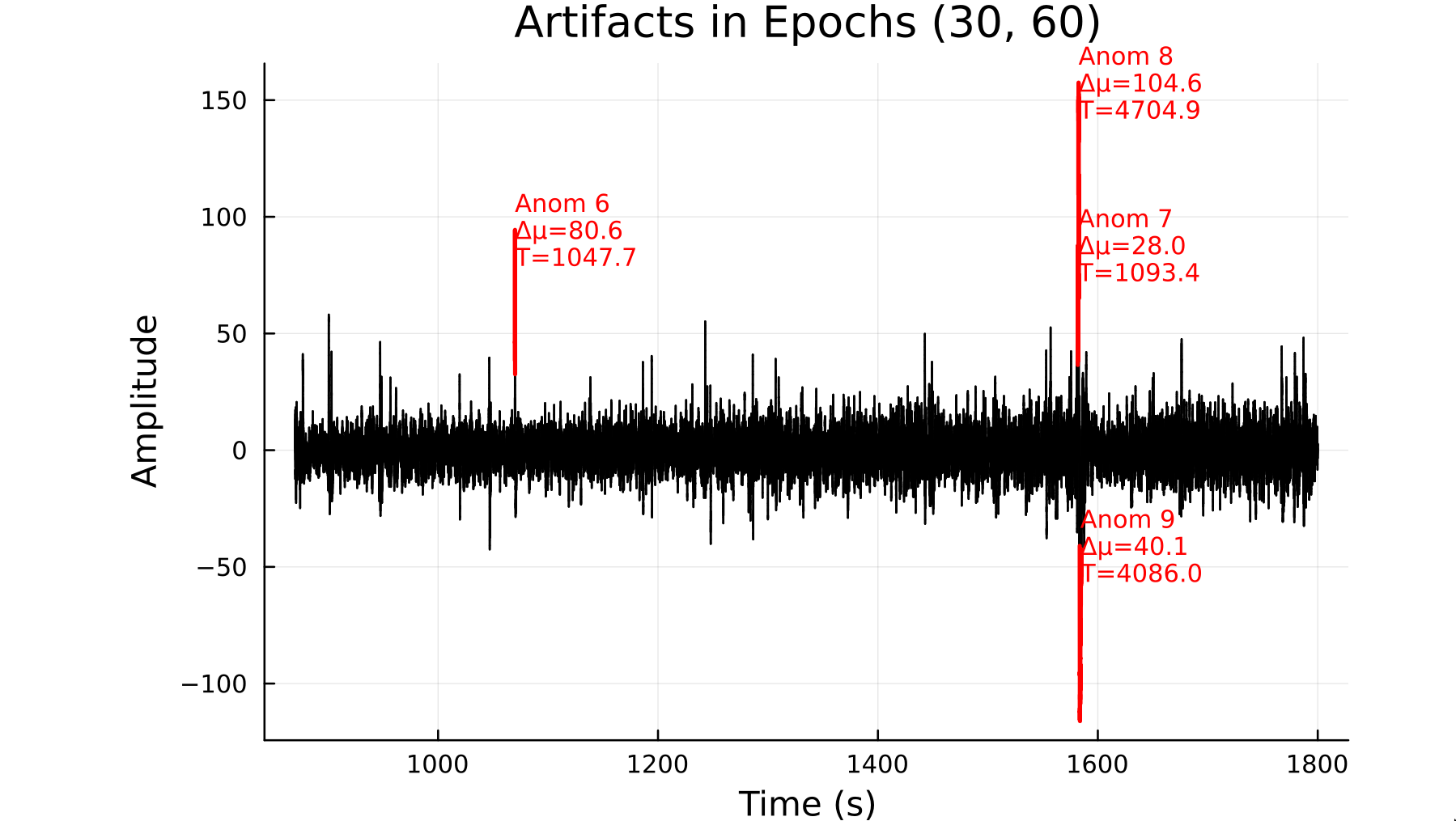

Artifact detection

This package provides native Julia implementations for automated artifact detection in EEG signals. Two distinct approaches are available: one based on time-domain statistical properties (Hjorth parameters) and another based on frequency-domain spectral power anomalies (Buckelmueller method).

Both methods operate on 30-second epochs and return a boolean mask where true indicates a rejected (artifact) epoch.

Hjorth Parameters Method

The hjorth_artifacts function detects artifacts using global outlier detection based on Hjorth parameters: Activity (variance), Mobility, and Complexity.

This method assumes that clean EEG epochs follow a standard distribution of these parameters. It calculates the global mean and standard deviation for the entire signal and flags epochs that deviate by more than z_thresh standard deviations.

The algorithm can run for k iterations. In each pass, it recalculates the global statistics (mean/std) excluding the artifacts found in previous rounds. This progressively "tightens" the threshold, catching smaller artifacts that were initially masked by extreme outliers.

Buckelmueller Method

The buckelmueller_artifacts function detects artifacts using a local spectral power ratio criterion. This is particularly useful for detecting transient high-energy events that stand out against their immediate background.

For each epoch, the Power Spectral Density (PSD) is computed, and power is extracted for the Delta (0.6–4.6 Hz) and Beta (40–60 Hz) bands. An epoch is flagged if its band power exceeds the local average of its neighbors (within a sliding window) by a specified ratio.

EEGToolkit.buckelmueller_artifacts — Function
buckelmueller_artifacts(signal::TimeSeries;
                        window_length=15,
                        delta_threshold=2.5,
                        beta_threshold=2.0) -> Vector{Bool}

Detect artifact epochs using a local spectral power ratio criterion inspired by Buckelmueller-style artifact detection.

The signal is segmented into 30-second epochs. For each epoch, power spectral density (PSD) is computed and band power is extracted for:

  • Delta band: 0.6–4.6 Hz
  • Beta band: 40–60 Hz

An epoch is flagged as an artifact if its band power exceeds the mean band power of neighboring epochs within a sliding window (excluding the center epoch) by a specified ratio threshold.

Specifically, an epoch i is marked as an artifact if:

delta_power[i] / local_delta_mean > delta_threshold

or

beta_power[i] / local_beta_mean > beta_threshold

where local means are computed over the surrounding window.

Segmentation is done symmetrically, so if the signal has an ending epoch of <30 seconds, it will will be dropped. This may result in the output mask having a length of num_epochs(signal) - 1 instead of num_epochs(signal).

Arguments

  • signal::TimeSeries: Input time series containing signal samples and sampling frequency.

Keyword Arguments

  • window_length::Int=15: Number of epochs used to compute the local average. Must be odd.
  • delta_threshold::Real=2.5: Threshold for delta-band power ratio.
  • beta_threshold::Real=2.0: Threshold for beta-band power ratio.

Returns

  • Vector{Bool}: Boolean mask where true indicates an epoch classified as artifact.

Implementation Notes

  • PSD and band power are computed once per epoch for efficiency.
  • Local averages exclude the center epoch to avoid bias.
  • Uses @inbounds to avoid bounds checking inside inner loops.

Assumptions

  • Epoch duration is fixed at 30 seconds.
  • Sampling frequency is provided by signal.fs.
source
EEGToolkit.hjorth_artifacts — Function
hjorth_artifacts(signal::TimeSeries; z_thresh=3.0, k=1, mask=nothing, verbose=true) -> BitVector

Detect artifact epochs based on Hjorth parameters using an iterative global outlier detection method, optionally restricted to a subset of epochs.

The signal is segmented into 30-second epochs. Hjorth parameters (Activity, Mobility, Complexity) are computed for each epoch.

The outlier detection runs for k iterations. In each iteration:

  1. Mean and Standard Deviation are calculated using only epochs that are:
    • Included in the input mask (if provided).
    • NOT marked as artifacts in previous rounds.
  2. Epochs deviating by more than z_thresh from these new statistics are added to the artifact mask.

Segmentation is done symmetrically, so if the signal has an ending epoch of <30 seconds, it will will be dropped. This may result in the output mask having a length of num_epochs(signal) - 1 instead of num_epochs(signal).

Arguments

  • signal::TimeSeries: Input time series.

Keyword Arguments

  • z_thresh::Real=3.0: Z-score threshold for identifying outliers.
  • k::Int=1: Number of iterations for outlier detection.
  • mask::Union{BitVector, Nothing}=nothing: Optional mask. If provided, artifact detection is performed ONLY on epochs where mask is true. Epochs where mask is false are ignored and will never be marked as artifacts.
  • verbose::Bool=false: If true, prints detailed metrics about the detection process.

Returns

  • Vector{Bool}: Boolean mask where true indicates an epoch classified as artifact.
source

Empirical mode decomposition and Hilbert-Huang transform

Empirical mode decomposition (EMD) is a method for decomposing a signal into a set of intrinsic mode functions (IMFs) that represent oscillatory modes embedded in the signal. The Hilbert-Huang transform (HHT) is a method for analyzing the instantaneous frequency and amplitude of the IMFs obtained from EMD. (See Huang et al. (1998) for more details).

This package provides native Julia implementations of both EMD and HHT, as well as functions for visualizing the resulting IMFs and their Hilbert spectra. The EMD implementation uses the standard sifting process to extract IMFs, while the HHT implementation computes the instantaneous frequency and amplitude of each IMF using the Hilbert transform.

EEGToolkit.emd — Function
empirical_mode_decomposition(signal::AbstractVector;
                             max_imfs::Int=10,
                             sift_thresh::Float64=0.2,
                             max_sifts::Int=20)

Performs EMD using cubic splines.

Arguments

  • signal: Input vector.
  • max_imfs: Safety limit for number of IMFs.
  • sift_thresh: Standard Deviation threshold for stopping the sifting process.
  • max_sifts: Max iterations per IMF.
source
EEGToolkit.hht — Function
hilbert_transform(imfs::Vector{Vector{T}}, fs::Real)

Applies the Hilbert transform to each IMF to extract instantaneous amplitude and frequency.

Arguments

  • imfs: Vector of IMFs (output from your emd function).
  • fs: Sampling frequency in Hz.

Returns

  • inst_amp: Vector of vectors containing instantaneous amplitudes.
  • inst_freq: Vector of vectors containing instantaneous frequencies (Hz).
source
EEGToolkit.plot_imfs — Function
plot_imfs(signal::AbstractVector, imfs::AbstractVector{<:AbstractVector})

Produces a plot of IMFs derived from the emd function.

  • Top subplot: Original Signal.
  • Middle subplots: Intrinsic Mode Functions (IMFs).
  • Bottom subplot: Residual (Trend).

Returns the plot object for further manipulation if needed.

source
EEGToolkit.plot_hilbert_spectrum — Function
plot_hilbert_spectrum(inst_amp, inst_freq, t_range; freq_lims=(0, 60))

Plots the Hilbert Spectrum with optional frequency constraints.

Arguments

  • freq_lims: A tuple (minfreq, maxfreq) to filter visibility. Default is (0, 60) which is standard for EEG. Pass nothing to see everything.
source
EEGToolkit.plot_hilbert_heatmap — Function
plot_hilbert_heatmap(inst_amp, inst_freq, t_range;
                     freq_lims=(0, 30),
                     time_bins=500,
                     freq_bins=100)

Converts the scattered HHT data into a 2D Histogram (Heatmap). This is much cleaner for long EEG recordings.

Arguments

  • time_bins: Number of vertical slices (resolution in time).
  • freq_bins: Number of horizontal slices (resolution in frequency).
source

SWA dissipation and exponential decay fitting

A standard methodology for estimating slow-wave activity (SWA) dissipation is replicated from Armitage et al.. Provided a spectrogram, which we presume contains a spectrum per each NREM epoch, the procedure:

  • Computes SWA on each epoch, defined as total power in the delta band.
  • Normalizes SWA of each epoch expressing it as a percentage of the total NREM SWA amplitude across the full period.
  • Fits a 2-parameter exponential decay curve to the normalized data using a non-linear least squares optimization algorithm.

The mathematical model utilized for the homeostatic decay is

\[\text{SWA}(t) = \text{amp} \cdot e^{-kt}\]

where $\text{amp}$ represents the initial predicted SWA amplitude percentage at time zero, and $k$ is the dissipation constant representing the rate of decay over NREM sleep time.

EEGToolkit.sw_dissipation — Function
sw_dissipation(S::Spectrogram; kwargs...) -> (amp, k, errors)

Quantifies the homeostatic decline of Slow Wave Activity (SWA) by fitting a 2-parameter exponential decay model to the relative delta power time course. This replicates the methodology of normalizing SWA relative to total NREM amplitude as described in Armitage et al. (2000), "Slow-wave activity in NREM sleep: sex and age effects in depressed outpatients and healthy controls".

The dissipation is modeled using a non-linear least squares approach as:

SWA(t) = amp * exp(-k * t)

where k is the dissipation constant representing the rate of homeostatic decay.

Arguments

  • S::Spectrogram: The spectrogram object containing spectral data and the time domain.

Keyword Arguments

  • initial_epoch::Int=1: The starting epoch (spectrogram row) index for the analysis.
  • final_epoch::Int=length(S.time): The ending epoch (spectrogram row) index for the analysis.
  • start_params::Union{Nothing, Vector{Float64}}=nothing: Initial guesses for [amplitude, k]. If nothing, the function uses automatic heuristics.

Process

  1. Trend Extraction: Extracts absolute power in the delta band (0.4–4.0 Hz).
  2. Normalization: Expresses SWA amplitude as a percentage of the total SWA amplitude across the selected NREM epochs.
  3. Time Synchronization: Shifts the time domain so that the fit starts at time = 0.
  4. Non-linear Fitting: Utilizes least squares fitting to optimize the 2 parameters.

Returns

  • amp::Float64: The fitted amplitude (predicted SWA % at time = 0).
  • k_value::Float64: The dissipation constant (decay rate).
  • errors::Vector{Float64}: The standard errors for the fitted parameters.
source
EEGToolkit.plot_dissipation_fit — Function
plot_dissipation_fit(S::Spectrogram, amp::Real, k::Real) -> Plots.Plot

Visualizes the normalized Slow Wave Activity (SWA) data against the fitted 2-parameter exponential decay curve.

Arguments

  • S::Spectrogram: The spectrogram object containing spectral data and time domain.
  • amp::Real: The fitted amplitude parameter.
  • k::Real: The fitted dissipation constant (decay rate).

Returns

  • Plots.Plot: The generated plot object overlaying the empirical data and fit.
source

Helpers

EEGToolkit.zero_pad — Function

zero_pad(v::Vector{T}, desired_length::Integer) where {T<:AbstractFloat}

Zero-pads a numeric vector v to a desired_length

source

Examples

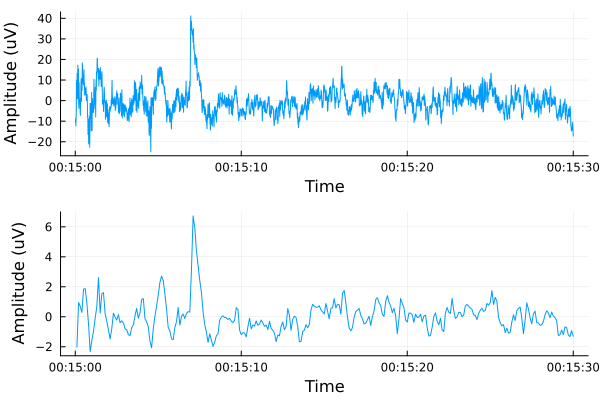

Resampling

file = "myeeg.edf"
eeg = EEG(file)
signal = get_channel(eeg, "EEG6")
resampled = resample(signal, 10.0) # Resample signal to 10Hz.
p1 = plot_ts(signal, 30, 30) # Plot epoch 30
p2 = plot_ts(resampled, 30, 30) # Plot epoch 30

p = plot(p1, p2, layout=(2, 1), link=:x, legend=false)

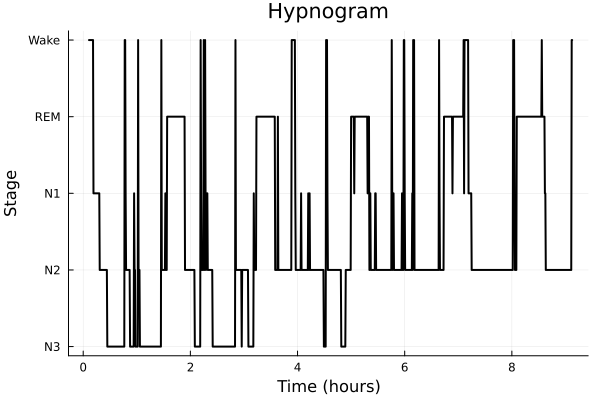

Hypnogram

staging = CSV.read("staging.csv", DataFrame) # Some staging data
replace!(staging, "NS" => "?", "REM" => "5", "WK" => "6", "N1" => "1", "N2" => "2", "N3" => "3", "N4" => "4") # Convert it to appropriate format (see Staging data type)
staging = Staging(staging) # Convert to Staging data type
p = plot_hypnogram(staging) # Plot

Artifact detection + masking + power spectral analysis

The following example demonstrates how to iterate through NREM periods, applying both an inclusion mask (the NREM period itself) and a rejection mask (artifacts detected via Buckelmueller and Hjorth methods) to compute a clean spectrogram for each period.

# Assume `staging` is a Staging object and `eeg` is loaded
nrem_periods = nrem(staging)
ts = get_channel(eeg, "EEG C4-A1")
S = []

for i in 1:length(nrem_periods)
    # 1. Select the current NREM period mask
    nrem_mask = nrem_periods[i]

    # 2. Detect artifacts (returns BitVectors where true = artifact)
    b_arts = buckelmueller_artifacts(ts)
    h_arts = hjorth_artifacts(ts; k=10, mask=nrem_mask)

    # 3. Combine artifact masks (Union of artifacts)
    art_mask = b_arts .| h_arts

    # Use simple boolean logic to create final mask.
    final_mask = .!(art_mask) .& nrem_mask # Non-artifacted NREM epochs

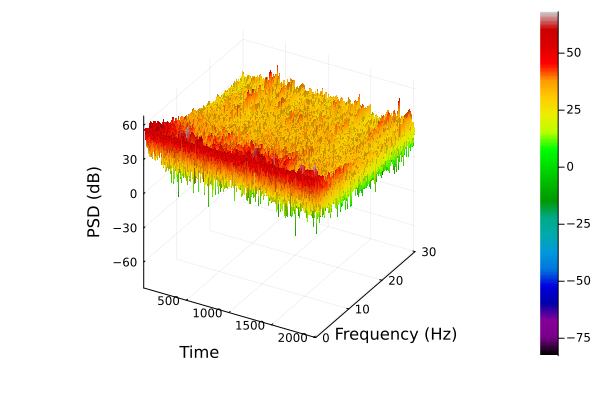

    # 4. Compute Spectrogram
    # Only includes epochs where nrem_mask is TRUE and art_mask is FALSE
    spectrogram = epoch_spectrogram(eeg, "EEG C4-A1"; mask=final_mask, dB=true)

    push!(S, spectrogram)
end

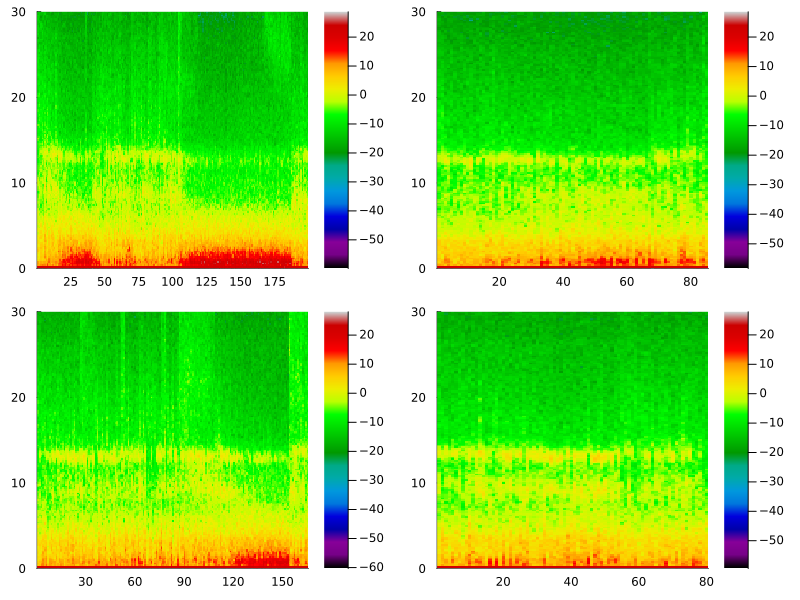

# Plot each spectrogram for visualization, store plots in list `plots`
# In this example, four NREM periods were detected, so we will have four
# spectrograms to plot.
plots = [plot_spectrogram(s) for s in S]
# Display the plots in 2x2 grid.
plot(plots..., layout=(2, 2), size=(800, 600))

# Let us also plot the average spectrum for each period. v

We could have also plotted the average spectrum for each period, which is obtained via the avg_spectra field of the Spectrogram struct. This can be easily done constructing a PSD object from these spectra and plotting it with plot_psd, or with some other custom plotting procedure. For example,

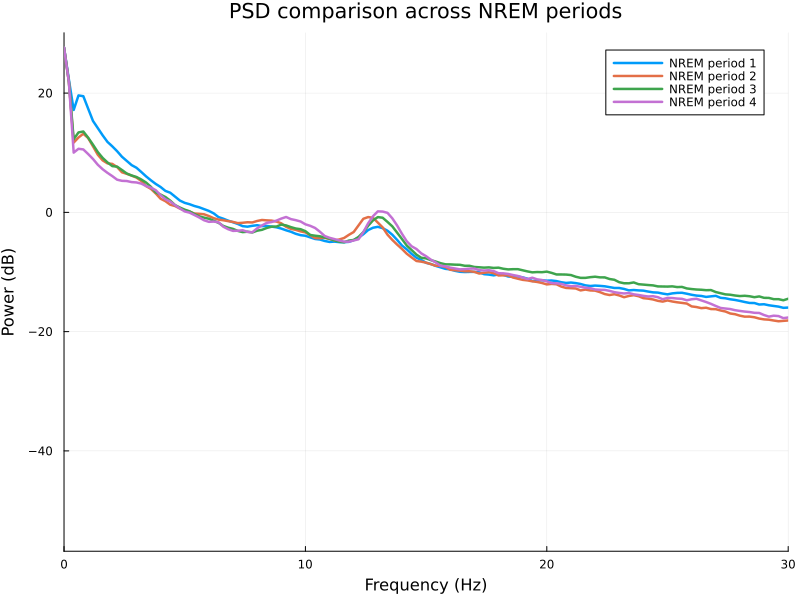

# 1. Prepare the data
# Notice that we are converting power to decibels for plotting purposes.
power_spectrums = [PSD(s.freq, pow2db.(s.avg_spectra)) for s in S]

# 2. Initialize the plot with axis limits and styling
p = plot(
    title = "PSD comparison across NREM periods",
    xlabel = "Frequency (Hz)",
    ylabel = "Power (dB)",
    legend = :topright,
    size = (800, 600),
    xlims = (0, 30),      # Limits the x-axis to 30Hz
    grid = true
)

# 3. Iteratively add each period
for (i, psd) in enumerate(power_spectrums)
    plot!(p, psd.freq, psd.spectrum,
          label = "NREM period $i",
          linewidth = 2.5)
end

# 4. Display the result
display(p)

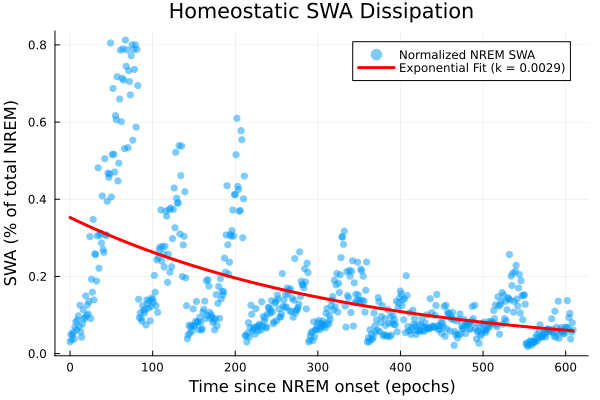

SWA dissipation

We now estimate SWA dissiation on a healthy subject and fit an exponential decay model to it, following standard methodology in sleep science. We assume the channel and stg variables are loaded already.


# Detect artifacts
b_arts = buckelmueller_artifacts(channel)
h_arts = hjorth_artifacts(channel; k=5)

# Combine both artifact masks
art_mask = b_arts .| h_arts
# Flip mask, since now it has 1 where there is ana artifact, 0 where there isn't;
# and we want 1 ==> use, 0 ==> do not use.
art_mask = .!(art_mask)

# Mask for all NREM stages.
nrem_mask = stage_mask(staging; include=[:N1, :N2, :N3])

# Final mask for artifact-free NREM stages.
final_mask = art_mask .& nrem_mask

# Compute the spectrogram of the channel using the mask.
S = spectrum(channel; mask=final_mask)

# Now that we have the spectrogram, we estimate the parameters
# of an exponential decay function fitted over SWA across time.
amp, k, errs = sw_dissipation(S)

# We plot the fit over the original data, showing SWA dissipation
plot_dissipation_fit(S, amp, k)

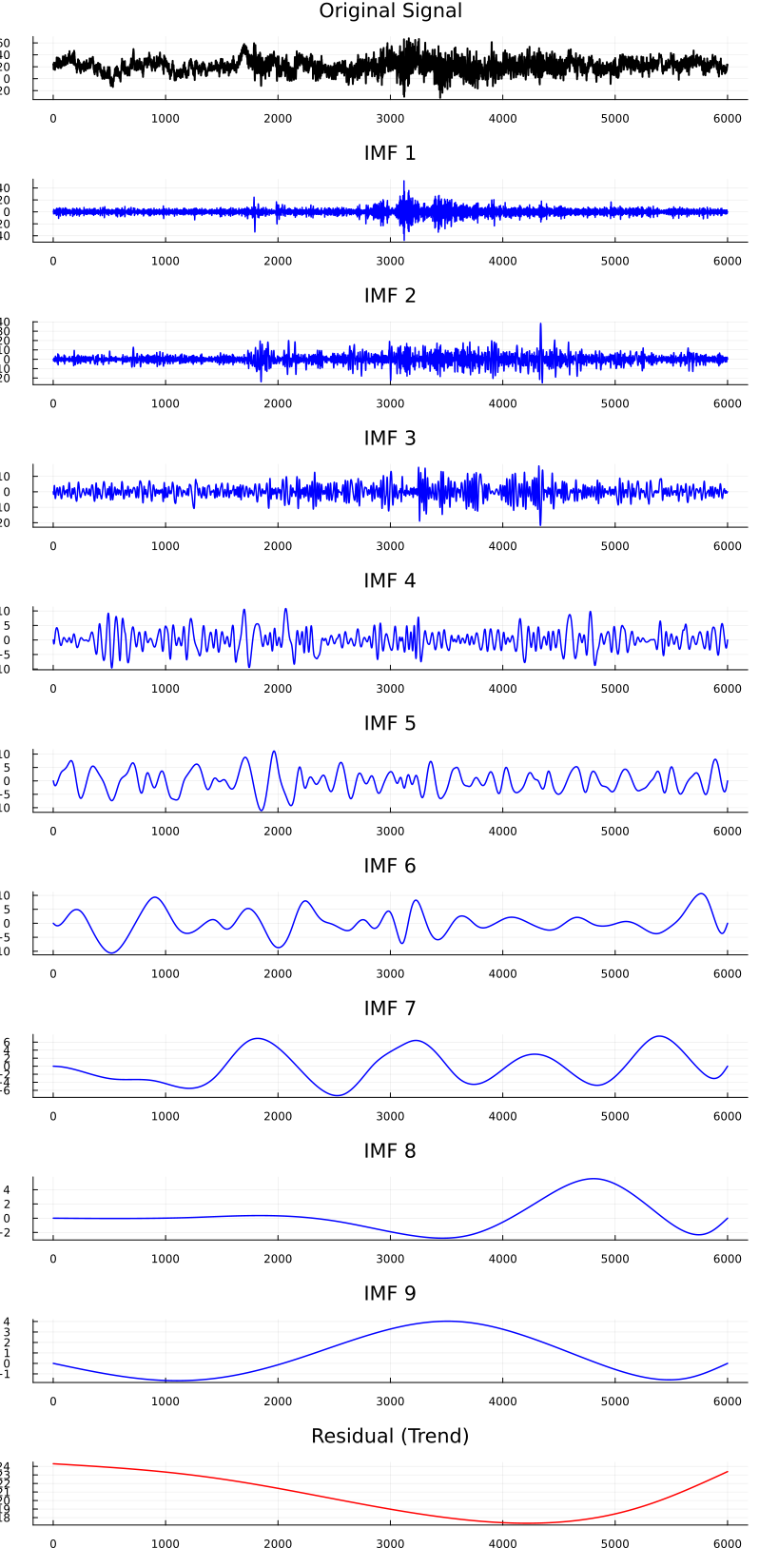

EMD decomposition

The following example demonstrates how to apply Empirical Mode Decomposition (EMD) to one epoch of the EEG. For a full-night EEG, since epoch-by-epoch looping makes little sense for this method, it would be recommended to resample the EEG to a lower sampling rate (e.g. 128Hz) and apply EMD to the entire signal at once.

path_to_eeg = "path_to_some_edf"
channel_name = "C4-A1"
eeg = EEG(path_to_eeg)
ts = get_channel(eeg, channel_name)
# Select one epoch (e.g. epoch 30)
epoch_ts = epoch(ts, 30)
imfs = emd(epoch_ts) # Decompose into IMFs
inst_amp, inst_freq = hht(imfs) # Apply Hilbert-Huang transform to IMFs

p1 = plot_imfs(imfs)

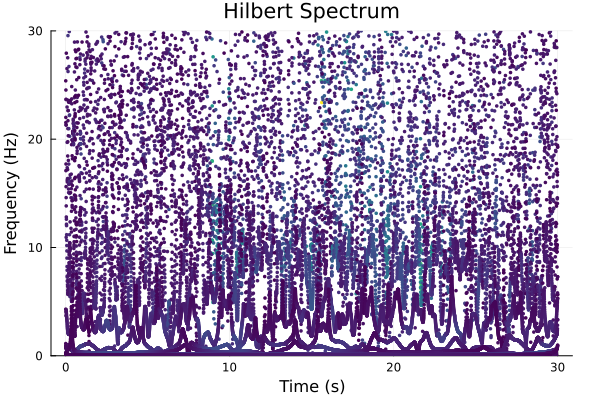

We could also plot the Hilbert spectrum, which shows the instantaneous frequency and amplitude of the IMFs over time. This can be done in two ways, both exemplified below.

# We generate a 30-sec time range for the plots
n = length(inst_amp[1])
t_range = range(0, stop=30, length=n)

# Plot IMFS
# Plot Hilbert spectrum
p2 = plot_hilbert_spectrum(inst_amp, inst_freq, t_range; freq_lims=(0, 30))

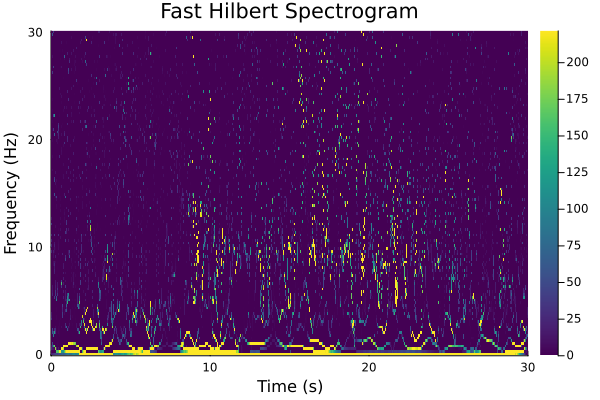

# Plot Hilbert spectrogram
p3 = plot_hilbert_heatmap(inst_amp, inst_freq, t_range; freq_lims=(0, 30))
